Fully automatic image measuring instrument (fixed gantry type) - HP442

Informazioni di base

Luogo di origine:	Guangdong, Cina
Marca:	UNIMETRO
Certificazione:	CE,ISO
Numero di modello:	serie di cavalli vapore

Quantità di ordine minimo:	1 insieme
Prezzo:	negoziabile
Imballaggi particolari:	Cassa in legno + pacchetto vuoto
Tempi di consegna:	15 ~ 20 giorni
Termini di pagamento:	L/C, D/A, D/P, T/T, Western Union, MoneyGram
Capacità di alimentazione:	5sets al mese

Miglior prezzo Contattaci

Informazioni dettagliate

Modello:	Serie HE	Nome del prodotto:	Strumento di misurazione delle immagini completamente automatico (tipo a portale fisso) - HP442
Ripetibilità:	1,5um	Precisione:	2,5+l/200um
Risoluzione della scala lineare:	0.5 mm (0,1 mm per opzionale)	Modalità di misurazione:	Completamente automatico
Supporto:	OEM, ODM, Personalizzazione	Scenario delle applicazioni:	Laboratorio/Industria
Garanzia:	12 mesi	Peso (kg):	560
Evidenziare:	fully automatic vision measurement machine , fixed gantry image measuring instrument , HP442 vision measurement machine

Descrizione di prodotto

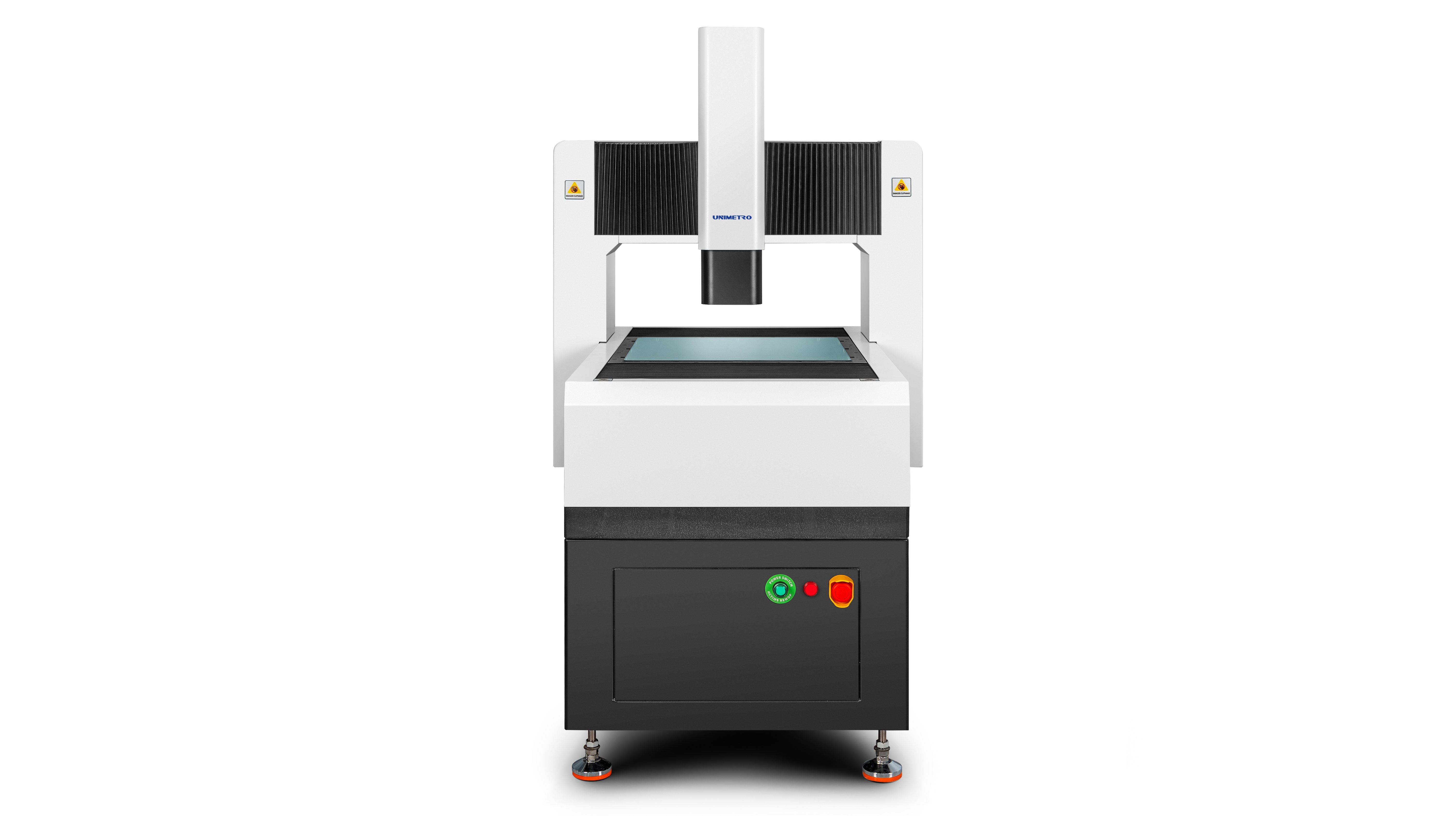

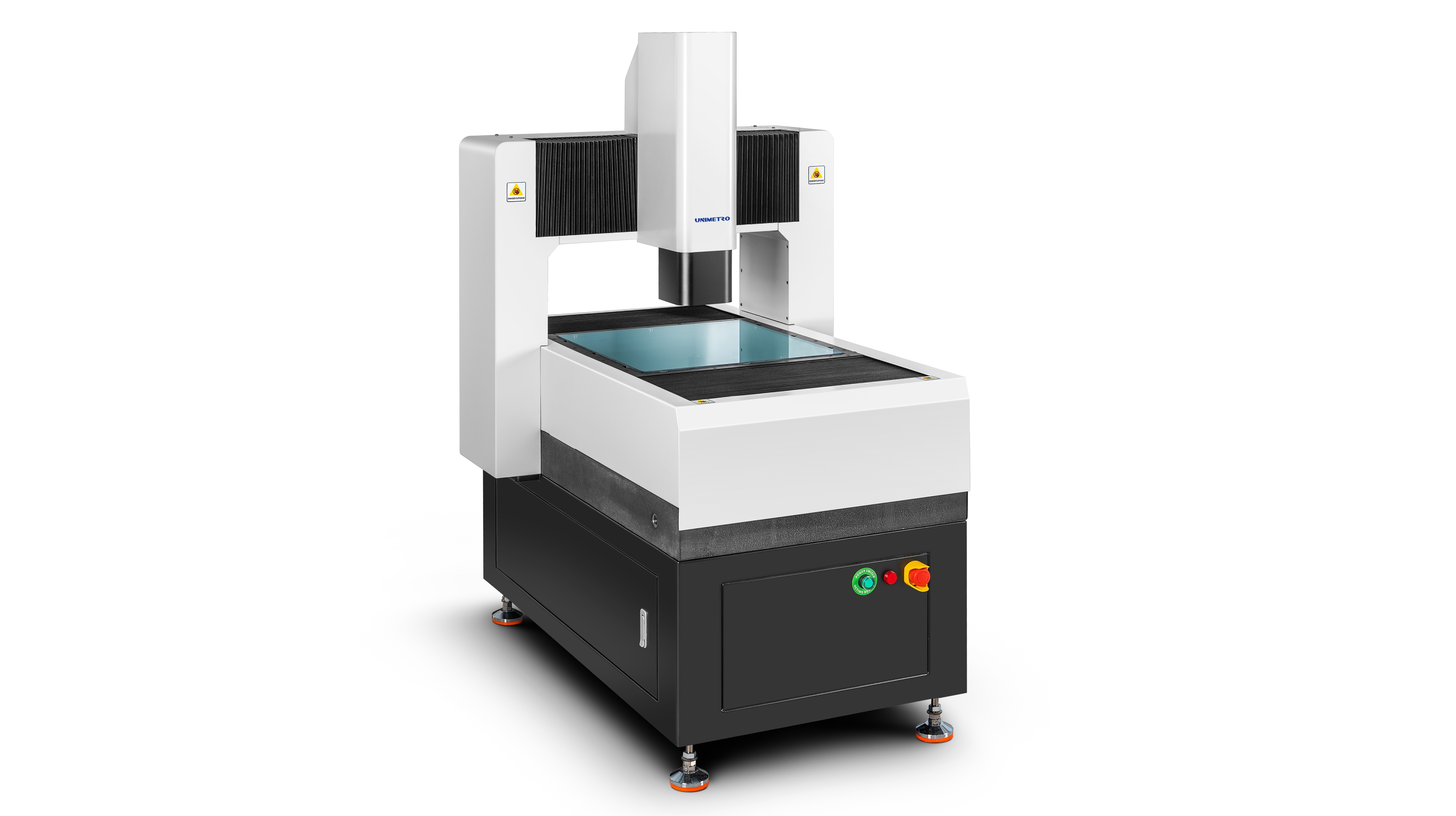

Fully automatic image measuring instrument (Fixed gantry type) - HP442

PRODUCT OVERVIEW

HP: High-Precision (High Precision)
The main features of the fixed gantry machine are high precision and full automation. "HP" in this context refers to the gantry machine as a "micron-level non-contact automatic optical precision inspection instrument". It helps to enhance the overall production accuracy and productivity for customers.

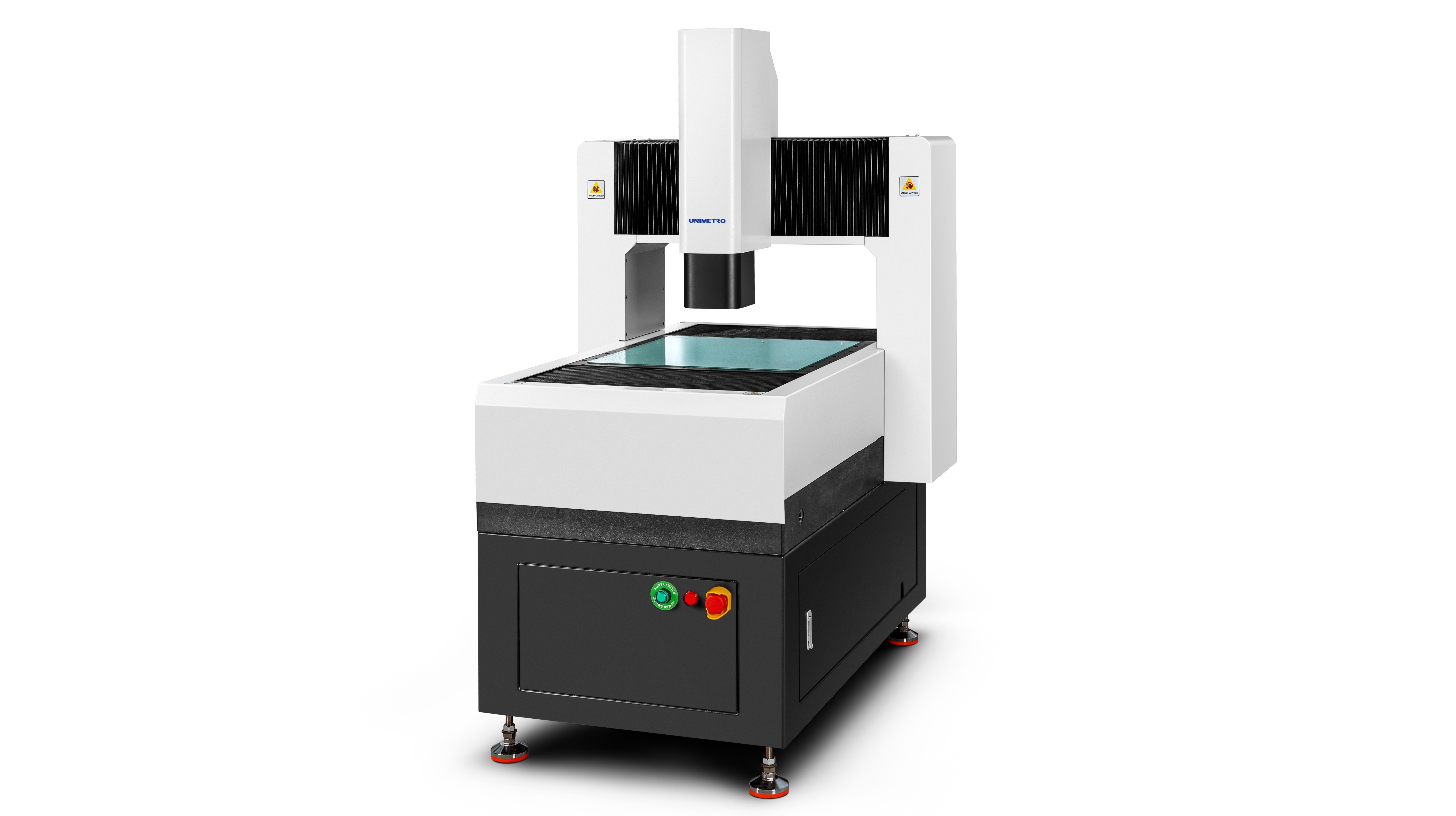

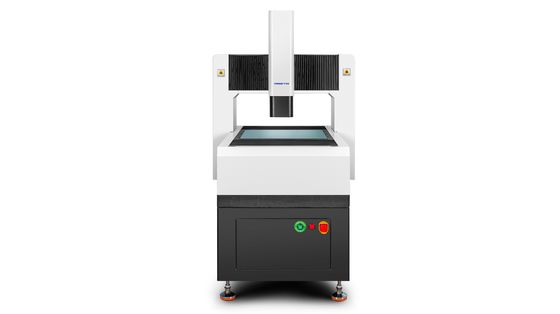

Fully automatic image measuring instrument (fixed gantry type) - HP442 0

Parameters

Model	HP 442	HP662	HP872
Dimensions (mm) (X x Y x Z)	92012001600	112014001600	132016001600
Measuring range (mm) (X x Y x Z)	400400200	600600200	800700200
Accuracy (um)	1.6 +L/200	1.6 +L/200	1.6 +L/200
Repeatability (um)	1.5	1.5	1.5
Weight(kg)	560	860	1600
Resolution	0.5μm(0.1um for option)	Industrial-grade color CCD camera
	Lens	1x-10x (Variable magnification)
	Magnification	20X - 200X (The magnification varies depending on the model of the selected camera; the actual magnification is subject to the measured data.)
	Video Magnification	18~195X (According to the different models of the selected camera, its magnification will change; the actual magnification is subject to the measured data)
	Work Distance	85mm
Illumination	Programmable surface light, LED bottom parallel light (optional: coaxial light)
Drive system	CNC control, linear motor drive; Handle control, mouse/keyboard control
Linear scale resolution (um)	0.1um

Application

Plastic parts

Metal parts

Stamping mold

Rubber part

Electronic part

PCBA part

Gear part

...

Fully automatic image measuring instrument (fixed gantry type) - HP442 1

Features

◆ High rigid structure design:

1) The whole closed frame moving bridge structure is adopted, the measuring workpiece is fixed, the bearing capacity is large, and the motion performance is good.
2) Introduce finite element analysis technology into mechanical design to ensure high rigidity and high precision mechanical structure.
3) Grade 000 granite base, high strength, corrosion resistance and good stability.
4) Aluminum oxide surface treatment worktable, fast and flexible action control, durable and beautiful.

◆ High precision configuration:

1) RENISHAW open grating ruler, resolution 0.5um, high precision and good stability.

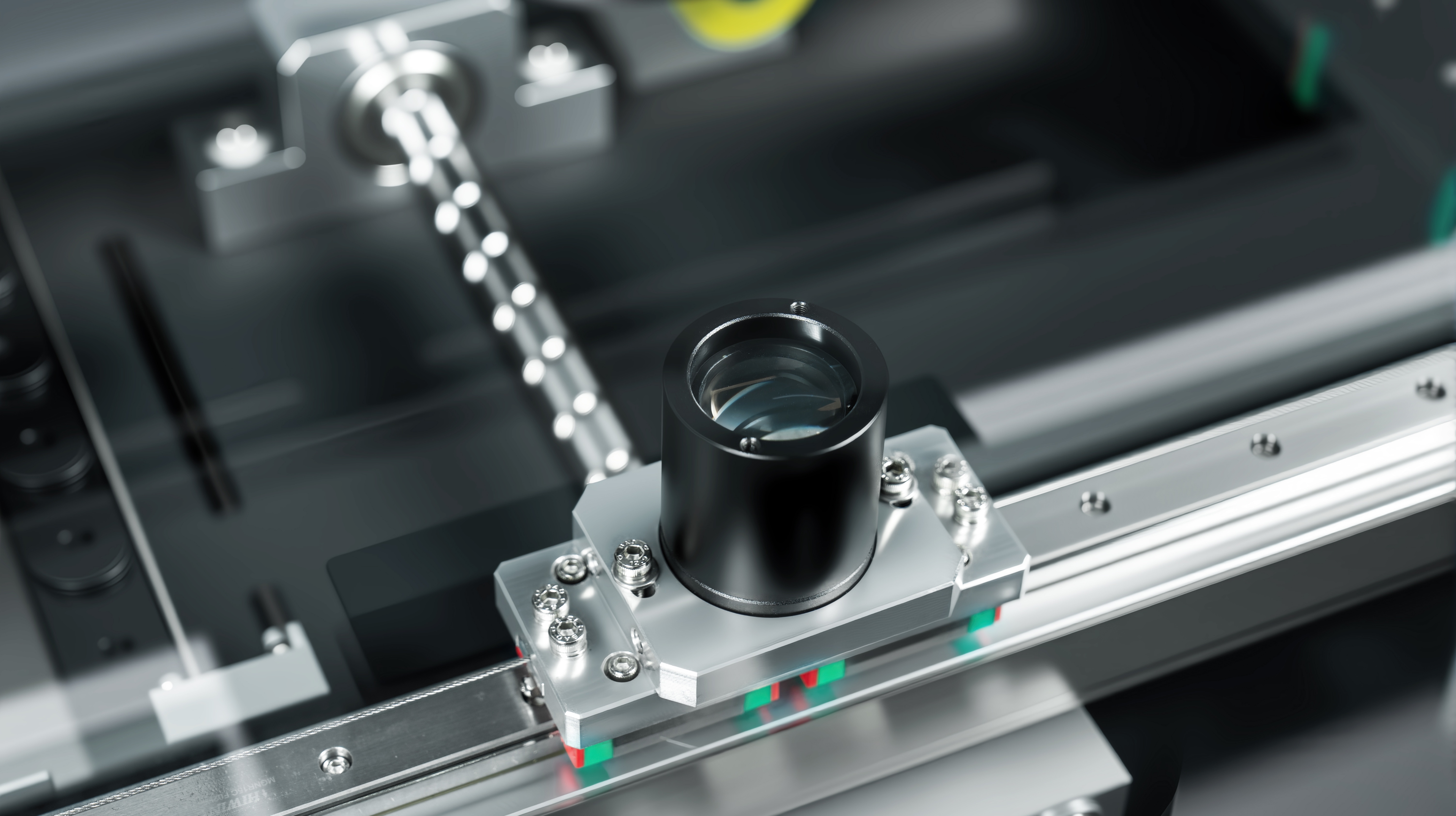

2) Precision linear guide rail, ball screw of grinder and AC servo motor ensure the stability of positioning accuracy of machine system.
3) 2M pixel high-definition color Giga digital camera meets the requirements of clear observation and stable measurement.
4) 6.5x high-definition optical lens, accurate automatic zoom, fast pixel calibration.

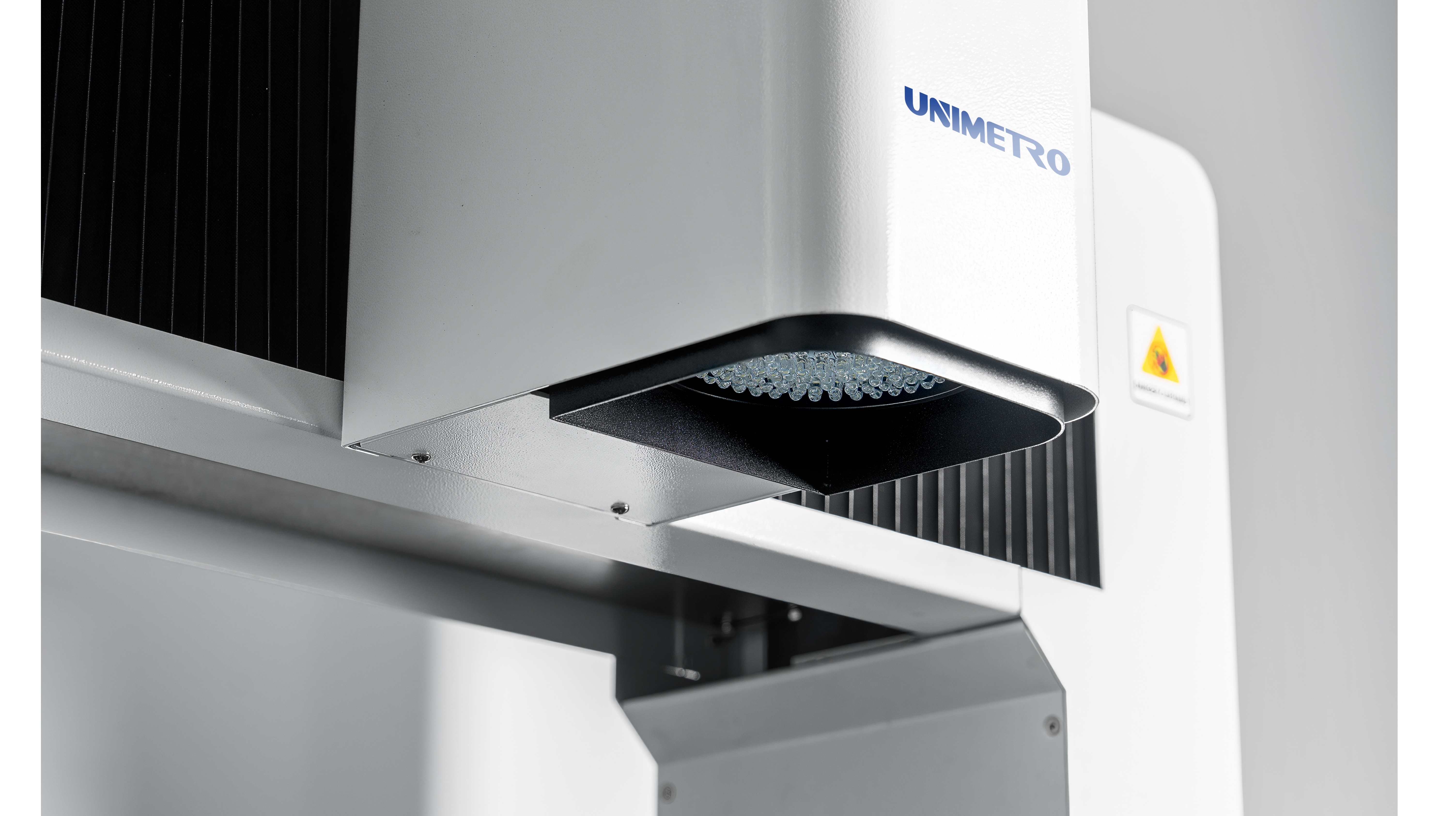

5) Programmable 5-ring 8-zone LED surface light source, transmission parallel LED contour light source system, intelligent 256 level brightness adjustment.

6) Full axis CNC control, AC full closed loop servo motor drive.

◆Optional multi-sensor for 3D measurement:

HE series large gantry type vision measuring instrument can be equipped with a variety of 3D sensors for comprehensive 2D / 3D composite measurement. It can also be equipped with non-contact sensors such as probe and laser. It also supports RENSHAW full series of probe bracket, so that users can complete the automatic transformation of full-scale measurement on one device, greatly improving productivity.

Company Information

Our Client&Agent

FAQ
Q1: Are you a factory or trading company ?
A1: We are a factory and giving you the quickest reply in 24 hours.
Q2: What's your company mainly in?
A2: We are mainly produce Vision measuring machine,Coordinate measuring machine ,CMM&VMM fixturesetc.
Q3: How to Choose the Appropriate Specification?
A3: As long as you tell us variety and size of product to be measured, our professional team would advise you of measuring instrument of suitable specifications.
Q4: Do you accept customized service?
A4: Be sure! We can provide not only typical machines, but also the machines customized to customer's needs.
Q5: What is your warranty period?
A5: Our product warranty period is 1 year. Our product quality is very stable, and we have improved a lot on some breakable parts. You can rest assured of our product quality.
