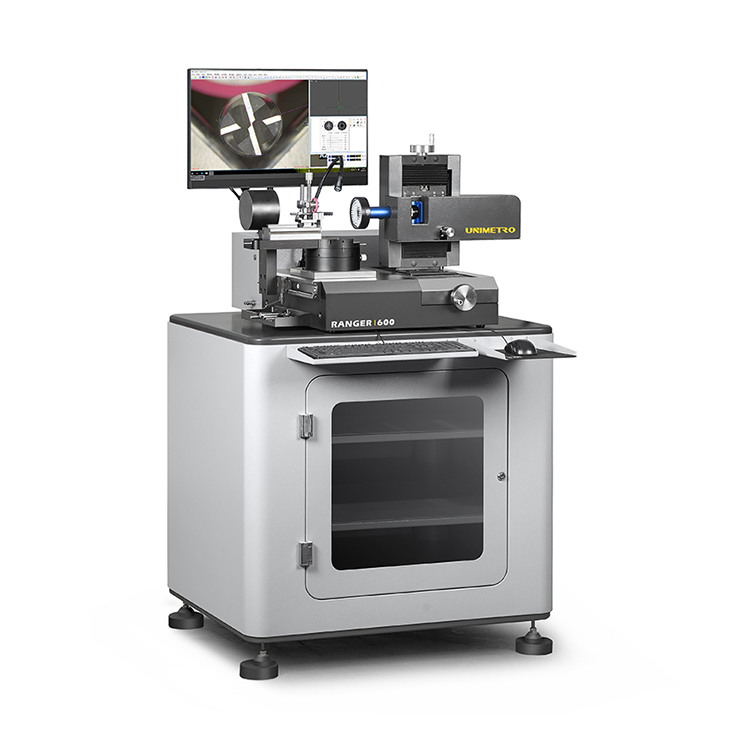

UNIMETRO RANGER600 Tool Inspection System for Milling
Product Application
The UNIMETRO RANGER600 Tool Inspection System is the universal measuring machine for drills, milling cutters, and countersinks with a flexible illuminating system. Thanks to its compact design and great stability, the RANGER600 can be employed in metrology rooms, receiving inspection, or directly in production.
Configured with SMARTOOL universal measuring software, this system is the ideal instrument for all types of metal cutting tools, from fast checking of single criteria (such as outer contour or angles) to complete control of special tool geometries. Users can easily achieve a PUT-MEASURE-ANALYSE workflow with the RANGER600.
Technical Specifications
| Parameter |
Value |
| X axis travel |
80mm |
| Y axis Travel |
60mm |
| Z axis measuring range |
60mm |
| Max tool Diameter |
50mm |
| Max tool length |
300mm |
| Working distance |
90mm |
| Lens |
0.7-4.5X dented zoom lens |
| Camera |
2M pixel HD camera/5M pixel HD camera (Optional) |
| Linear scale resolution |
0.0001mm |
| Magnification |
12.6X~79.2X/25.2X~158.4X (Optional) |
| Field of view |
27*20mm~4.3*3.3mm/13.5*10mm~2.3*1.6mm (Optional) |
| Measuring accuracy |
X~Y,(2.5+L/100)µm, L is the measured length |
| PC |
ALL-IN-ONE PC system, Windows 10 OS, with 24" LCD monitor |
| Illumination |
8 sections LED ring light, contour light and flexible auxiliary light, all software control and programmable |
| Input format |
DXF files |
| Output format |
EXCEL, DXF |

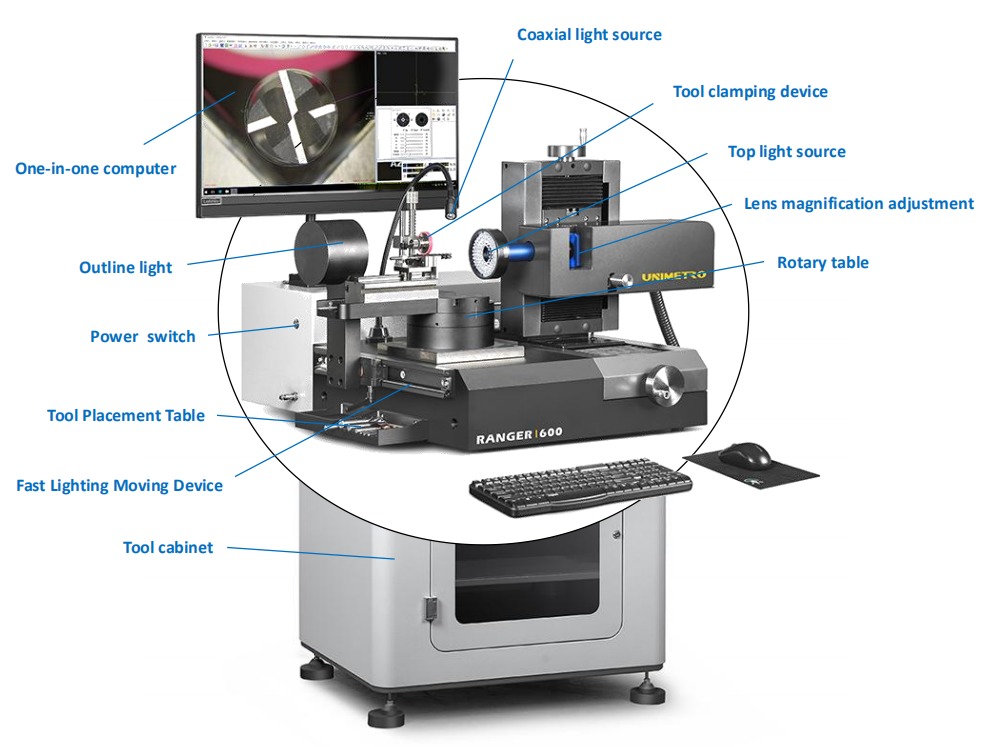

Advanced Design Features
- Ergonomic design with solid construction
- HD image capturing and display with optional microscope magnification
- Stable V block for secure tool holding and alignment
- Mechanical fixed measuring angles of 0° and 90° on rotary stage
- High accuracy encoder in rotary table for precise angle location
- Programmable LED ring light with contour lighting and auxiliary light
- SMARTOOL measuring software with specialized cutting tool functions
- Automatic edge detection and fast angle measurement with reticle
- CAD element comparison functions
- Measurement results export to EXCEL or CAD files
- ALL-IN-ONE PC system for enhanced stability
Multiple Angle Measurement Capabilities

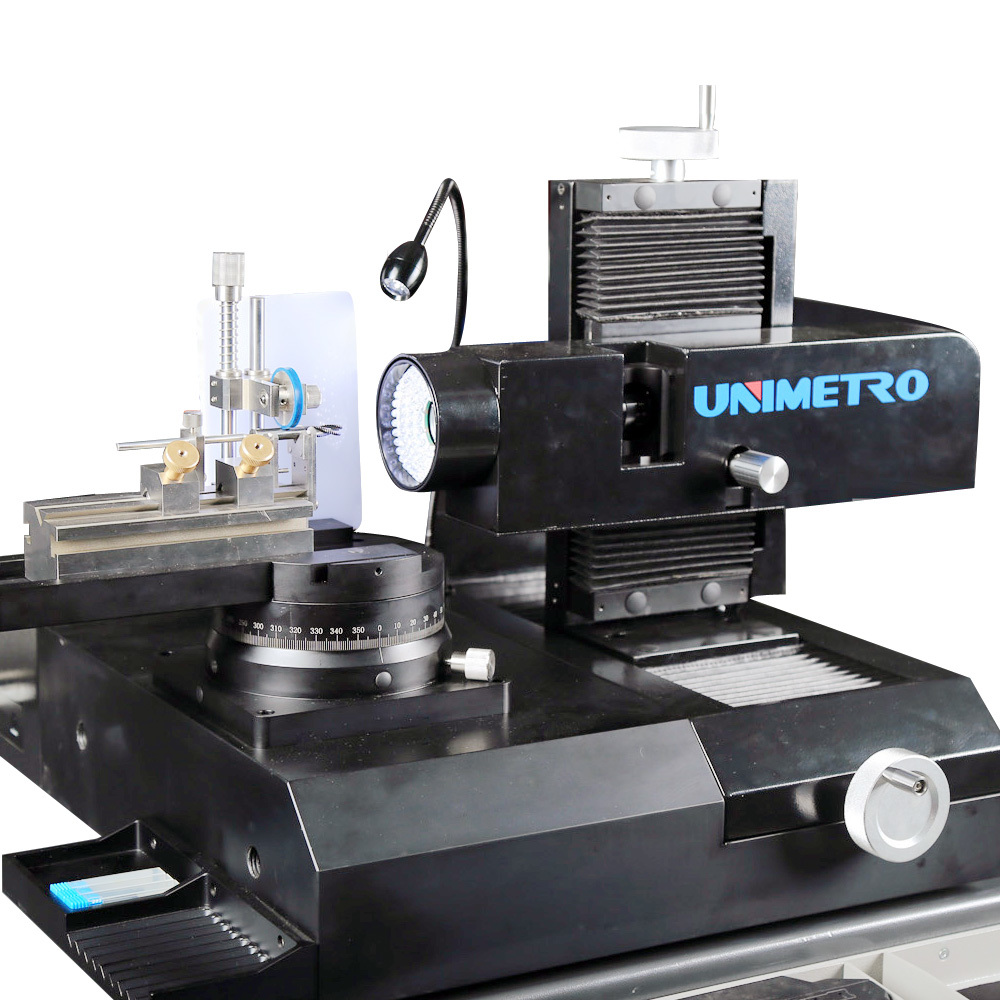

The rotary table offers two mechanical fixed angles (0° and 90°) for precise tool positioning. The 0° position enables measurement of Tool End, Tool End - Center shaft, and Tool End - front angle. The 90° position facilitates measurement of Helix angle, Axial Front angle, First Rear angle, Second Rear angle, and Tilting Edge angle. Additional angles can be precisely located using the embedded encoder, with angle readings displayed in the software.
Illumination System

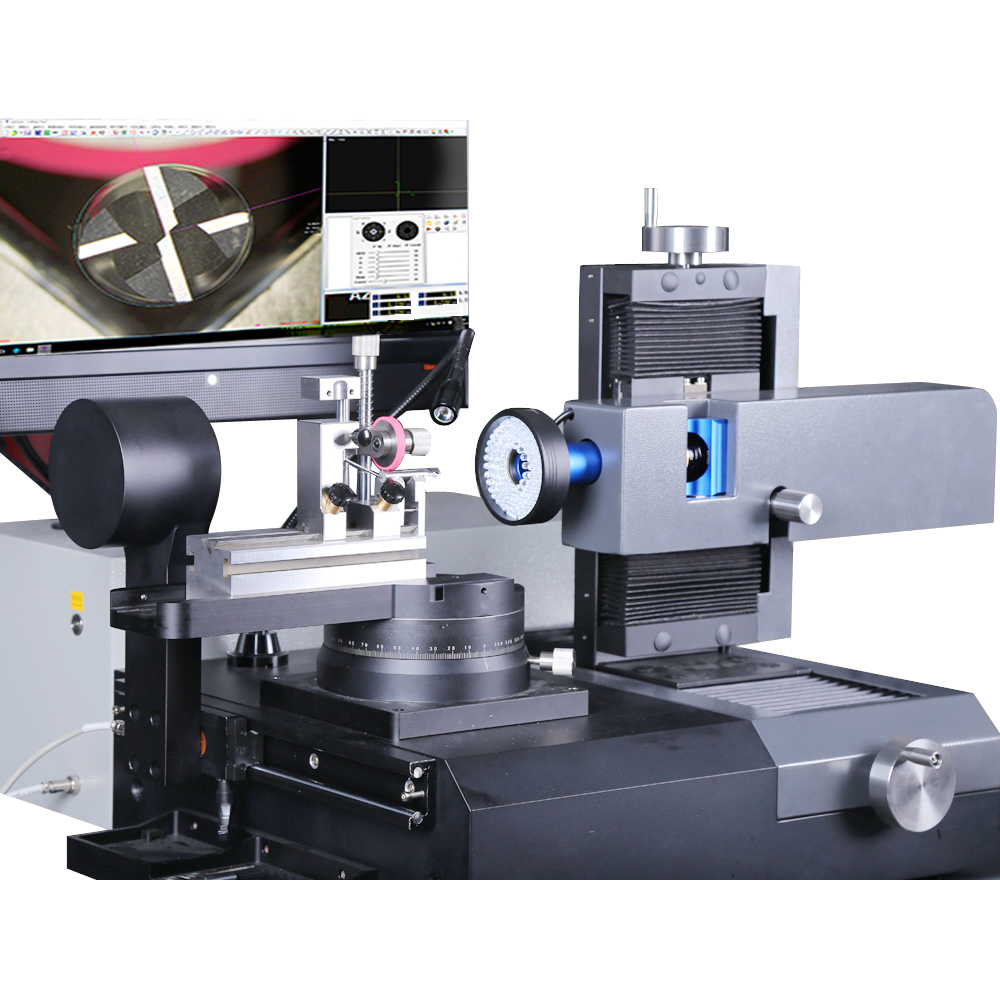

The system includes a dimmable additional light on a flexible arm for localized image enhancement, and a parallel light path contour LED light module that moves along the X-axis to provide optimal imaging of tool contours.
Workstation Features

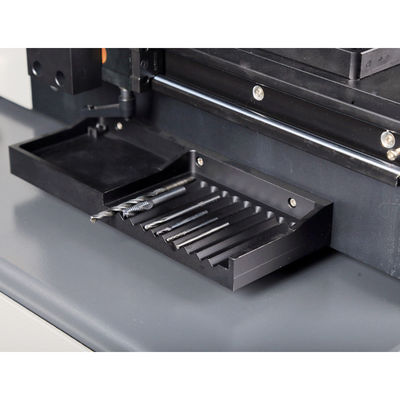

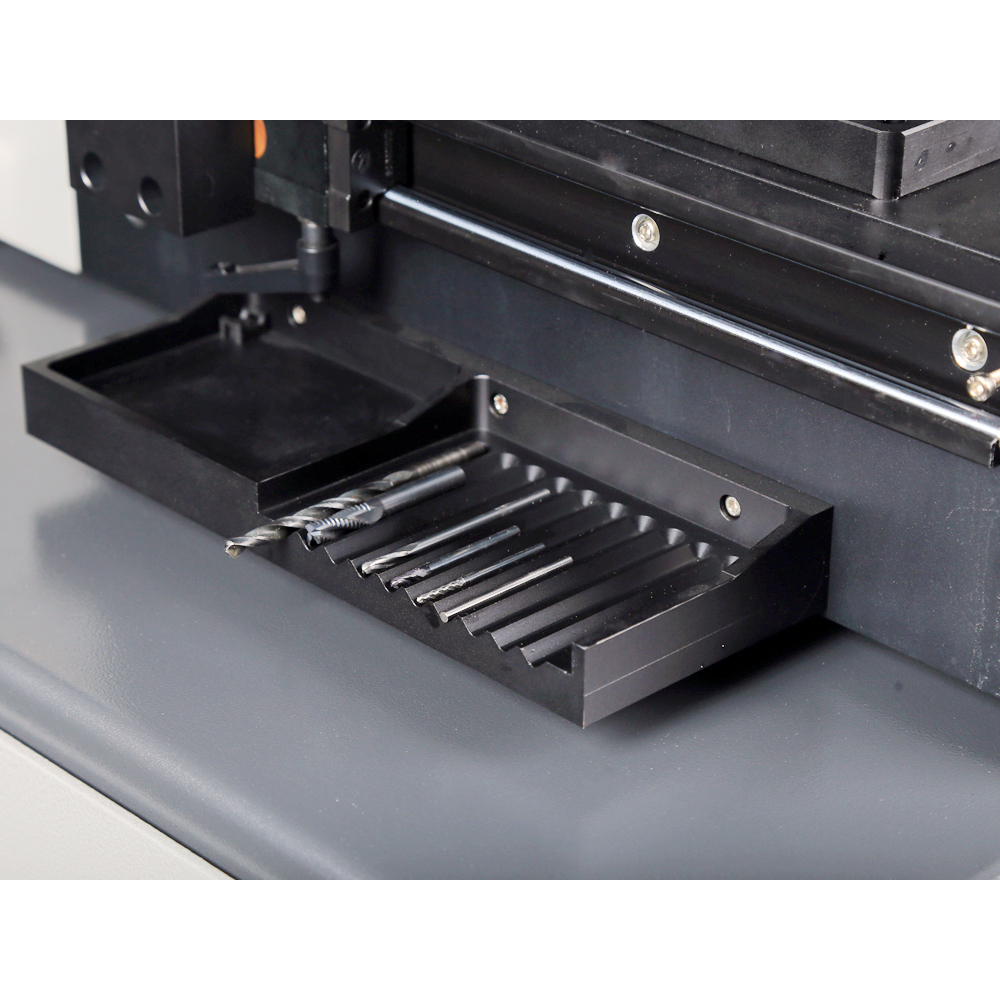

The system features a solid standing workstation with practical storage space and an integrated multi-section tool holder for organized tool preparation.
SMARTOOL Measuring Software
The SMARTOOL Cutting Tools Measuring Software is developed based on high-accuracy optical and digital measuring technology. It offers intuitive operation with numerous measuring and evaluation algorithms specifically designed for tools manufactured or sharpened in grinding operations.
Software Features
- High-resolution image display with graphical interface
- Dynamic real-time edge detection curve view
- Fast angle measurement with rotatable reticle
- CAD comparison function for tool geometry evaluation
- All function keys and control panels displayed on software window
Measuring Capabilities
The system can measure various tool angles and features including Helix Angle, Axial Front Angle, Rear Angles, Tilting Edge Angle, Tool End geometries, and more.
About UNIMETRO
UNIMETRO is a professional metrology manufacturer with over 10 years of experience, offering high-performance products at reasonable prices. We provide complete high-accuracy measuring solutions and welcome professional partners from global markets.
Our Capabilities
- 10+ years of metrology manufacturing experience
- Complete production line including core optical components
- Specialist team offering flexible measuring solutions
- Modular design concept minimizing after-sales service
- Advanced engineering design with 3D printing and rapid prototyping
- 24-hour engineering team support
